November 08, 2019

Testing the APIs

The ASIG sandbox is an isolated test environment where you can try out the standardized APIs. Below are instructions on how to make your first API call within this sandbox, or an API REST tool like Postman (see below). A sample set of data is available for each API to allow you to simulate an API call in a production environment.



API Calls

A series of fields are enabled to customize the call for each API. All API calls are structured with the following components:

Resource URL

Header Parameters

Try it out!

Some APIs will also include a Query Parameter.





Return Codes



The API will always return an HTTP STATUS. The table below summarizes the general response codes that are returned in the APIs.



 Code

 Description

2XX

The API call was successful.

4XX

The API call had an error. The error will be encoded in the body of the response.

5XX

The API call was unsuccessful. You should retry later.





Specific Return Codes

  HTTP Code

  Description

400

Bad request

The request could not be understood or required parameters were missing



2000

Invalid JSON Structure



2001

“Field name” is missing or invalid



2002

Invalid date



2003

Invalid combination of fields submitted. Check the API specification for eligible combinations



2004

“Field name” cannot be more than [max] characters

401

Unauthorized

Authentication failed or user doesn’t have permissions for requested operation



1000

API key is missing, invalid or expired



1001

API token is invalid, expired, or account associated with key does not have access to that API

403

Forbidden

Access denied, the operation is not allowed

404

Not Found

Resource was not found.

422

4001

Unprocessable request due to "%%"

500

3001

Internal server error

503

Service Unavailable

Service is temporarily unavailable





Account Validation Specific Return Codes

  Code

  Description

200

Account Status - Enabled

The request was successful.



Account Status - Disabled

The request was successful.







API Testing



Select the API that you want to test:

Bank Contact

Account Validation

Payment Initiation

Transaction Status



Bank Contact API Test Data

Use the sample bank contact test data below to test varying outcomes. The data with the positive response has been preloaded into the sandbox.



Bank Contact Test Account Data

Routing Transit

(Bank ID)

Name

Phone Number

Email

Contact Type

Response

061103852

John Q. Public

555-123-5678

[email protected]

ACH_FRAUD

Positive

061103853

Jane Smith

555-123-5679

[email protected]

ACH_FRAUD

Negative

061103852

John Q. Public

555-123-5678

[email protected]

WIRE_FRAUD

Negative





Follow the instructions provided for the specific API test components and use the highlighted areas to populate the relevant fields.



Resource URL

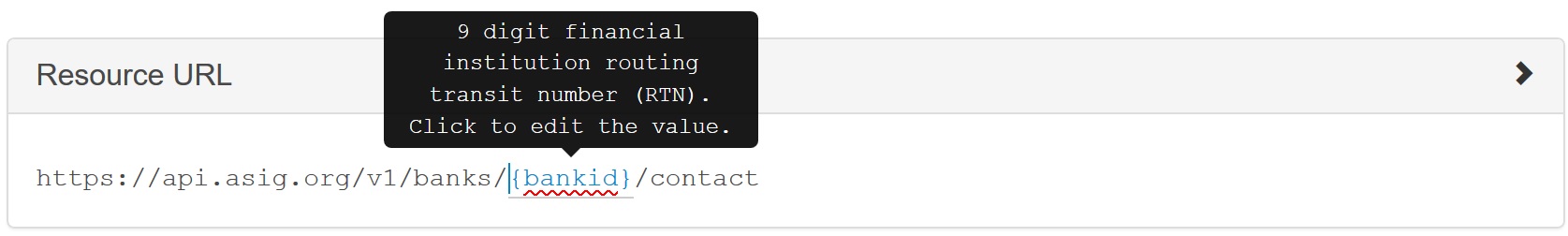

Resource URL needs to be customized for the Bank Contact API. If you hover your mouse over bankid, you will find an explanation of the field. Edit and insert a 9-digit value in the Resource URL.

Bank ID Resource

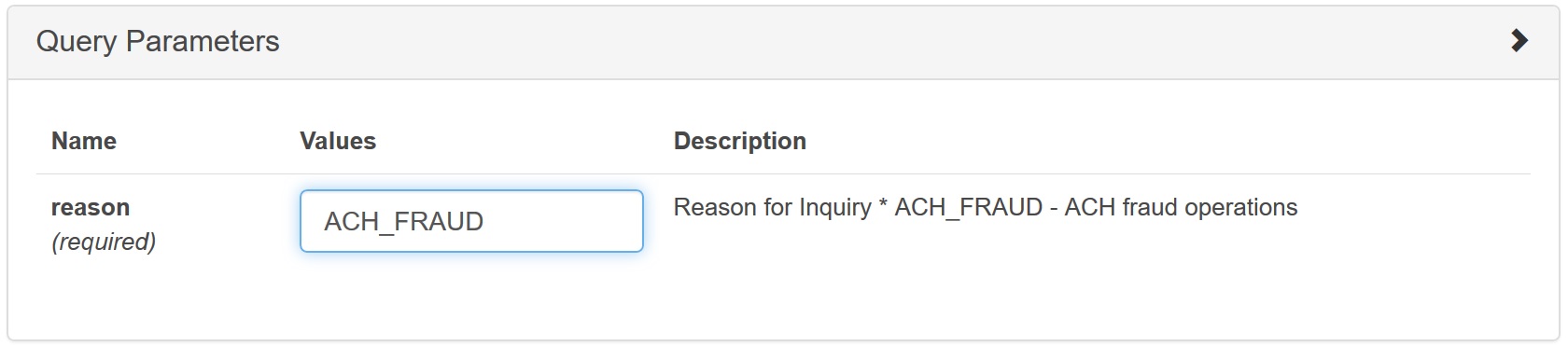

Set the Query Parameter with the reason for inquiry.

Query Parameter

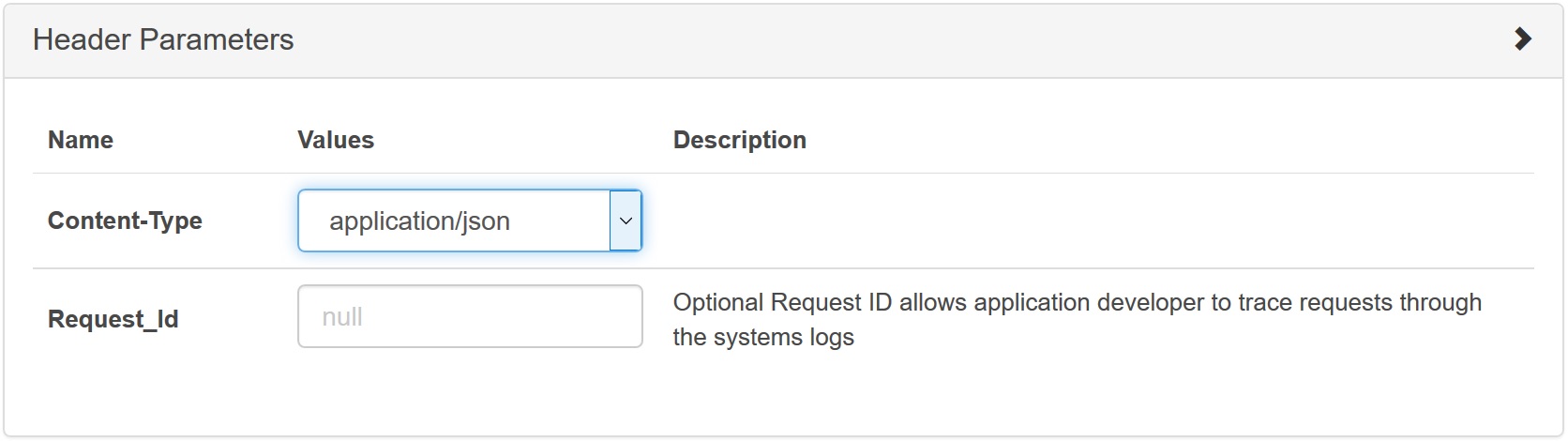

Header Parameter

Select “application/json” in the drop down menu for Content-Type for the Header Parameter.

Header Parameter

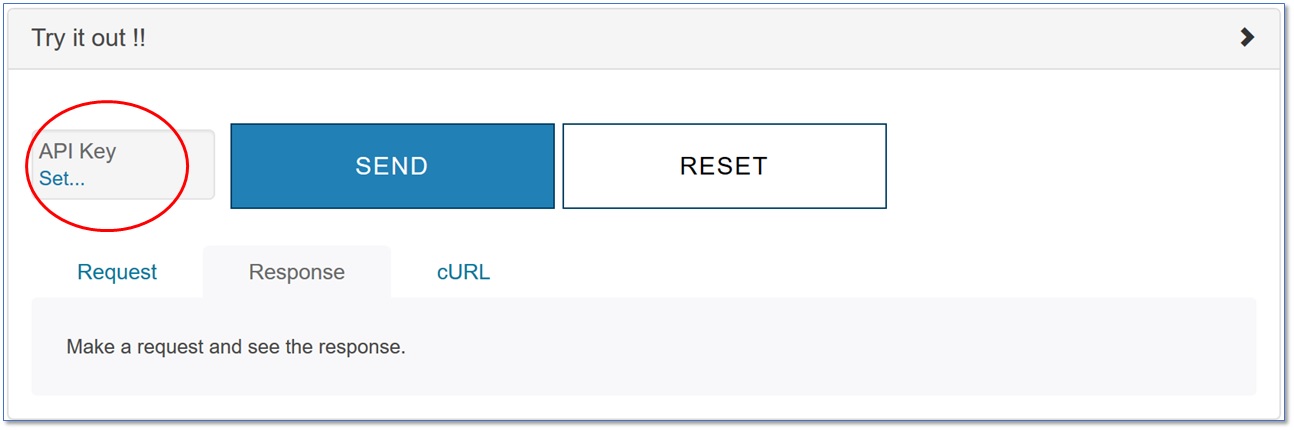

Try it out!

Set API Key information as previously provided in the Getting Started page.

Try it Out

Insert the following information in the open dialogue box:

  1. Name = "apikey" (all lowercase)
  2. Set value copied from the “Consumer Key” (make sure there is no space before or after the string of characters)
  3. Select “Query”

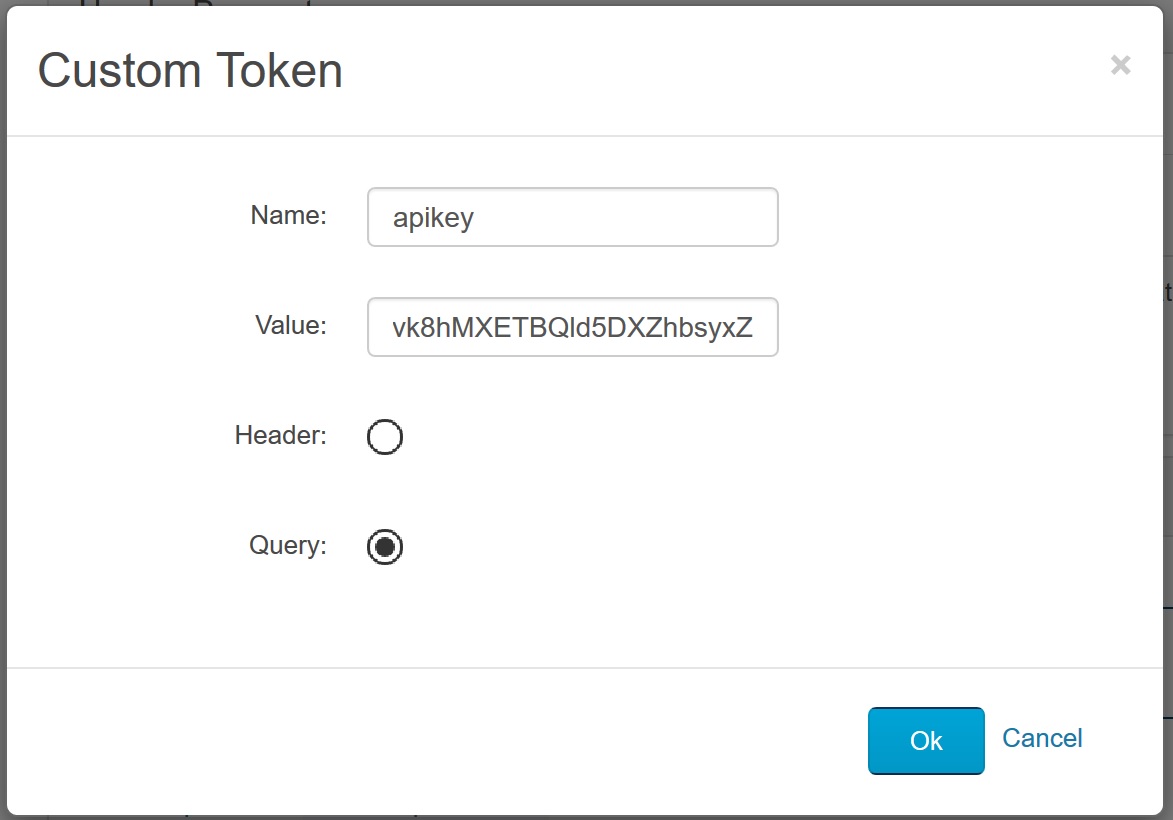

Custom Token



After customizing the call components, click the “SEND” button to execute the API call. The “RESET” button will reset all the fields to the ones used by default.





Response

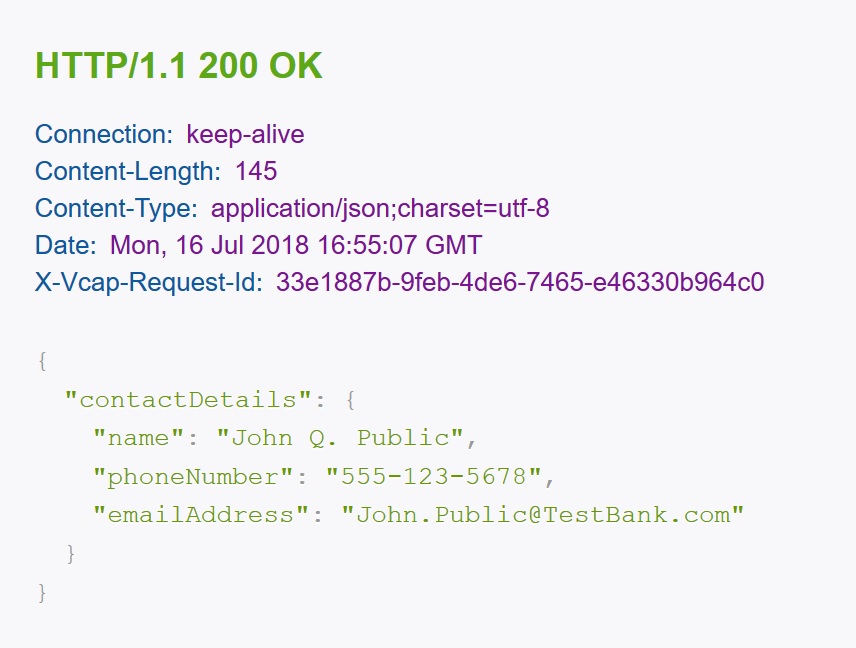

A positive API call will return a JSON that contains the information about the bank contact:

OK Response



If you test a call that does not include one or more of the required values, or if you test a call that provides an invalid value, you’ll receive the appropriate error response. When there is a 4XX error, additional description will help debug errors.

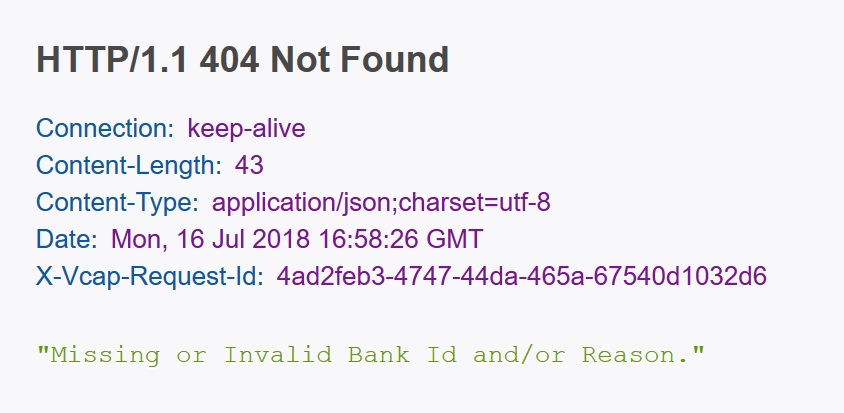

Example of an error response with an incorrect bank ID (i.e., bank transit routing number):

404 Not Found Response

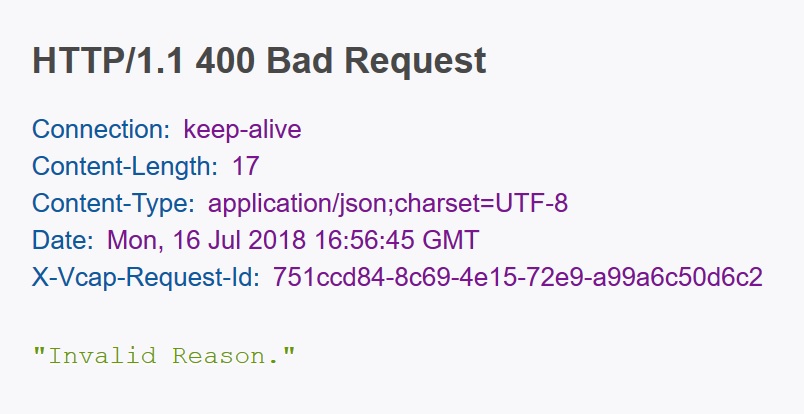

An error response for an invalid inquiry request e.g., WIRE_FRAUD:

404 Bad Request



Account Validation API Test Data

Account Validation test data is provided below with a variety of realistic account information.  This data has been preloaded into the sandbox and should all return a successful account validation outcome of 200 OK – Enabled or 200 OK – Disabled if used correctly in the API.



Positive Responses:







API Call

Routing Transit

(member identification)

Account Number

(creditor or debtor identification)

Name

Account Type

Account Accepts

Clearing System

Status

Creditor Account

061103852

11101011

John Q. Public

Current

Credits

United States Routing Number

Active

Debtor Account

061103852

11101012

Jane Smith

Savings

Debits

United States Routing Number

Active

Creditor Account

061103852

11101013

John Smith

Current

Credits

United States Routing Number

Active

Debtor Account

061103852

11101014

Jane Public

Savings

Debits

United States Routing Number

Active

Creditor and Debtor Accounts

061103852

11101015

Jane Smith

Current

Credits and Debits

United States Routing Number

Active

Creditor and Debtor Accounts

061103852

11101016

John Smith

Savings

Credits and Debits

United States Routing Number

Active

Creditor Account

061103852

11101017

John Q. Public

Current

Credits

United States Routing Number

Closed

Creditor Account

061103852

11101018

Jane Public

Current

Credits

United States Routing Number

Active



*NOTE: A response may return as 200 OK – Disabled if the API call request information is correct, but the account is closed, or may not accept a credit or debit payment.



Using the sample customer-related data below will provide you with examples of failed API calls.  These should all return a negative response of 404 Not Found – Disabled.



Negative Responses:







API Call

Routing Transit

(member identification)

Account Number

(creditor or debtor identification)

Name

Account Type

Account Accepts



Clearing System



Status

Creditor Account

061103852

11101012

Jane Smith

Savings

Debits

United States Routing Number

Active

Debtor Account

 061103852

11101018

Jane Public

Current

Credits

United States Routing Number

Active

Creditor Account

 061103852

11101019

Susy Smith

Savings

Credits and Debits

United States Routing Number

Active







Resource URL

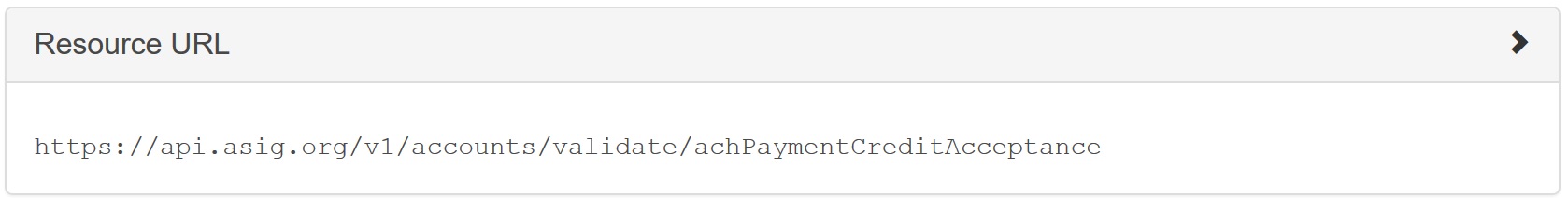

Resource URL has been preset for each account validation API:



ACH Credit

Resource Account Validation

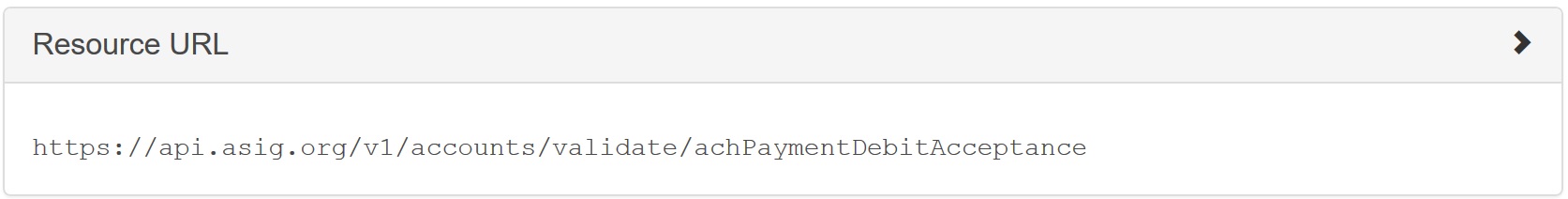

ACH Debit



 Resource Debit Account Validation

Header Parameter

Select “application/json” in the drop down menu for Content-Type for the Header Parameter.

Header Parameter





Try it out!

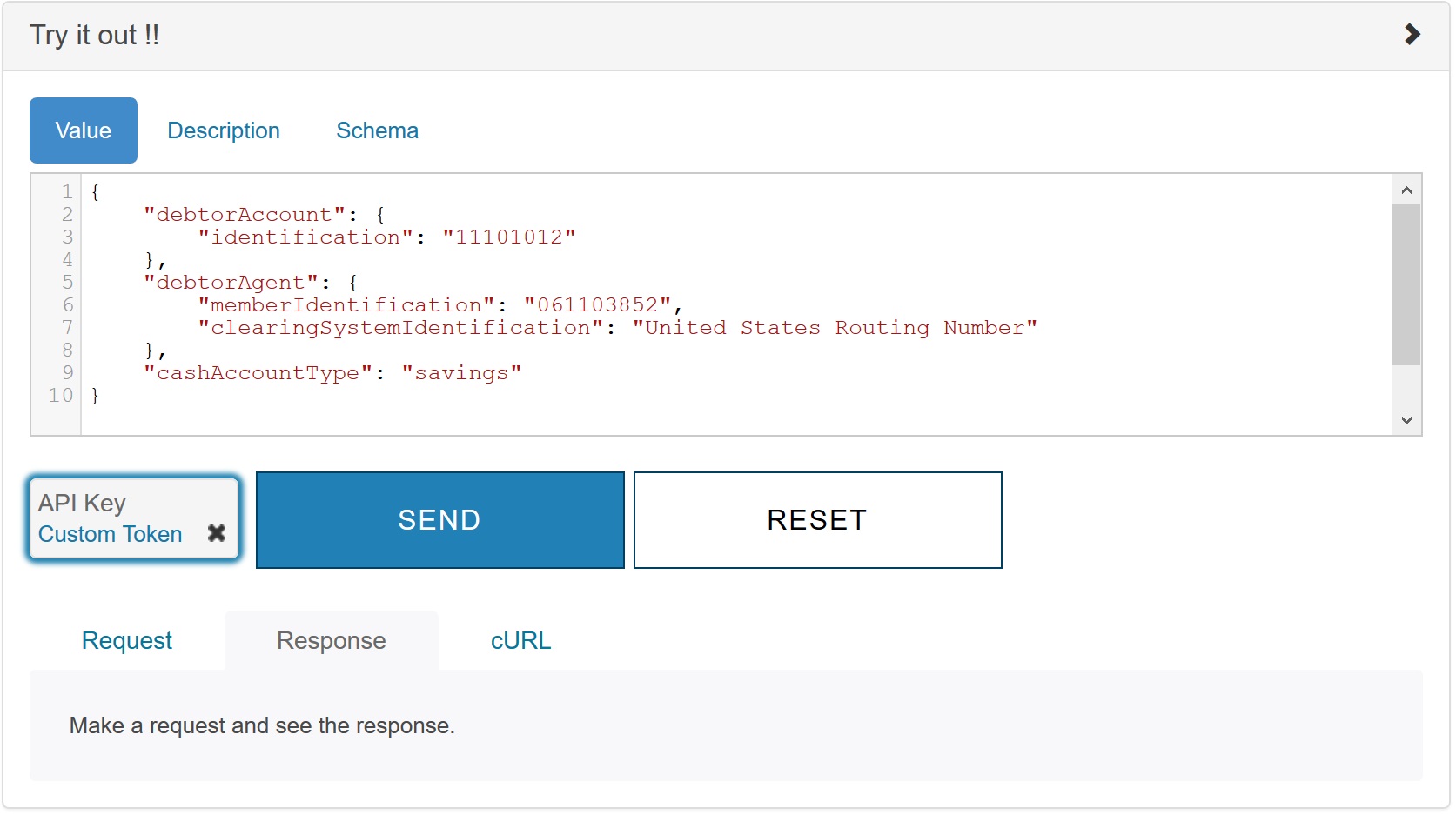

Input the relevant fields in the value tab from the test data provided.

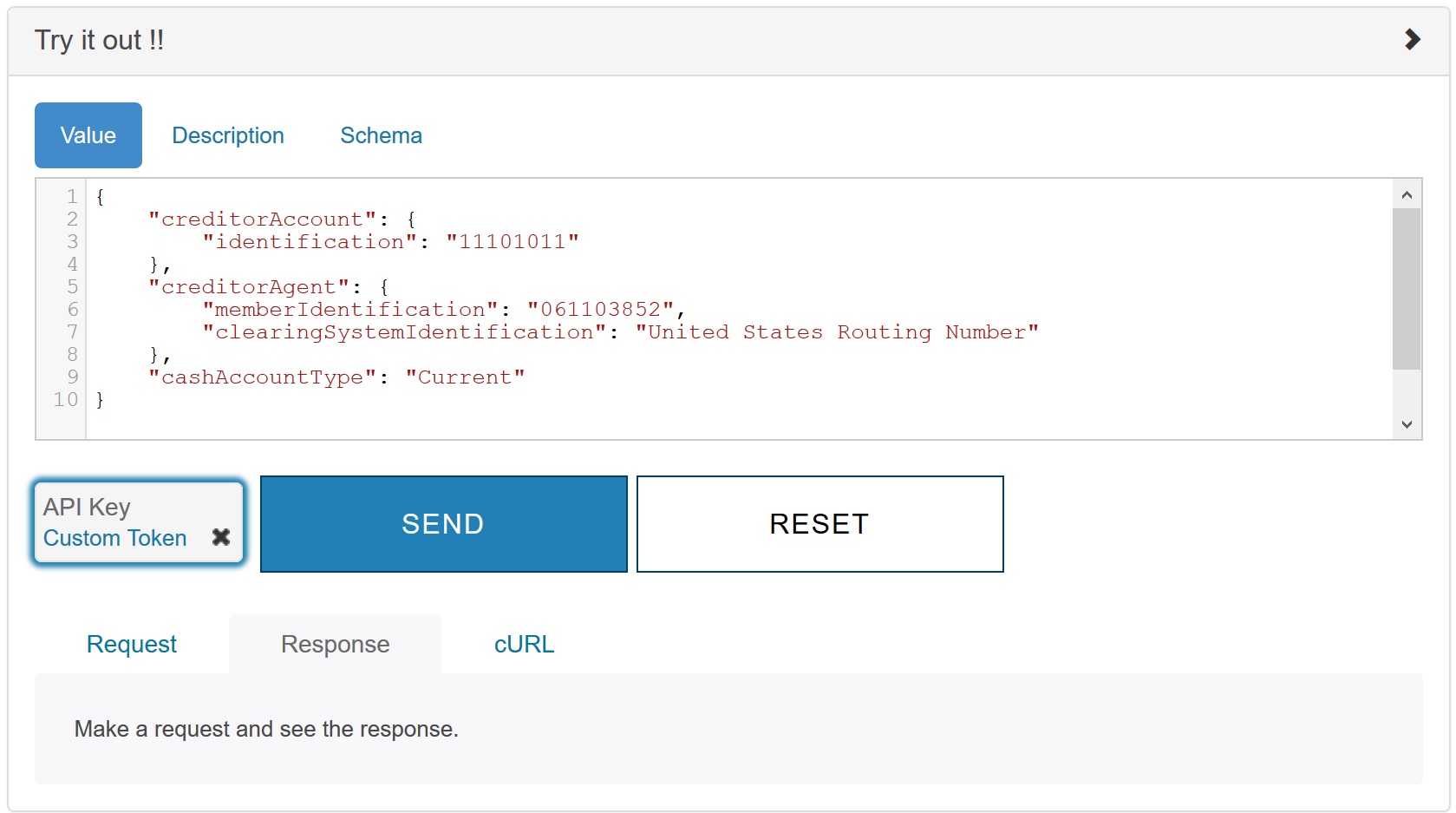

ACH Credit

Try It Out Account Validation



ACH Debit

Try it Out Debit Account Validation





Also, set API Key information as previously provided in the Getting Started page.  Insert the following information in the open dialogue box:

  1. Name = "apikey" (all lowercase)
  2. Set value copied from the “Consumer Key” (make sure there is no space before or after the string of characters)
  3. Select “Query”





Postman

In this section, we take a look at how to make direct HTTP requests by using Postman.   If you are new to Postman, see the Postman documentation and tutorials.

For a GET request like Bank Contact API insert the Resource URL and set the Consumer Key “?apikey=” with the appropriate credentials, followed by the reason i.e., “&reason=ACH_FRAUD” as shown below:

Postman GET



For a POST request like Account Validation, information has to be passed in the header and the body of the HTTP request (changing the values as required) as shown below.

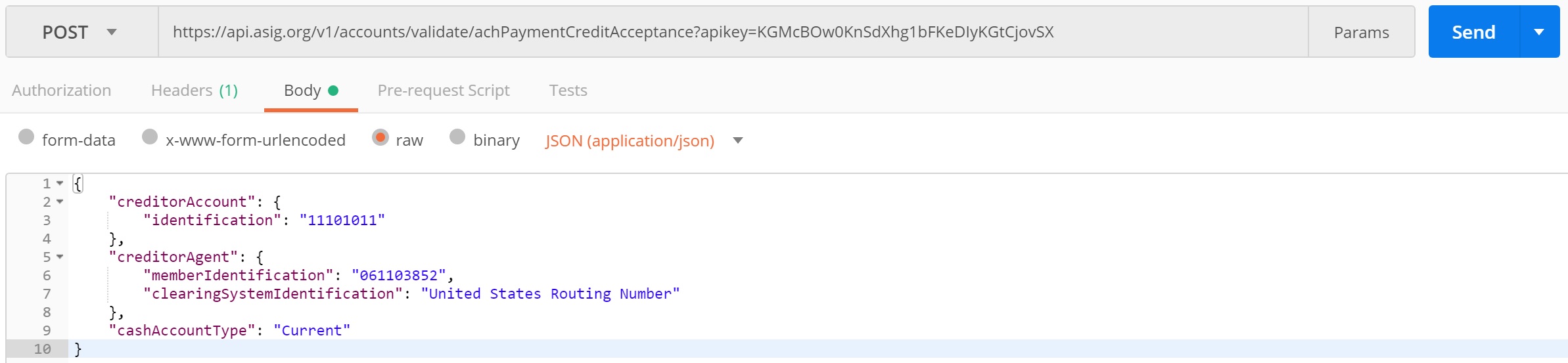

 Postman POST

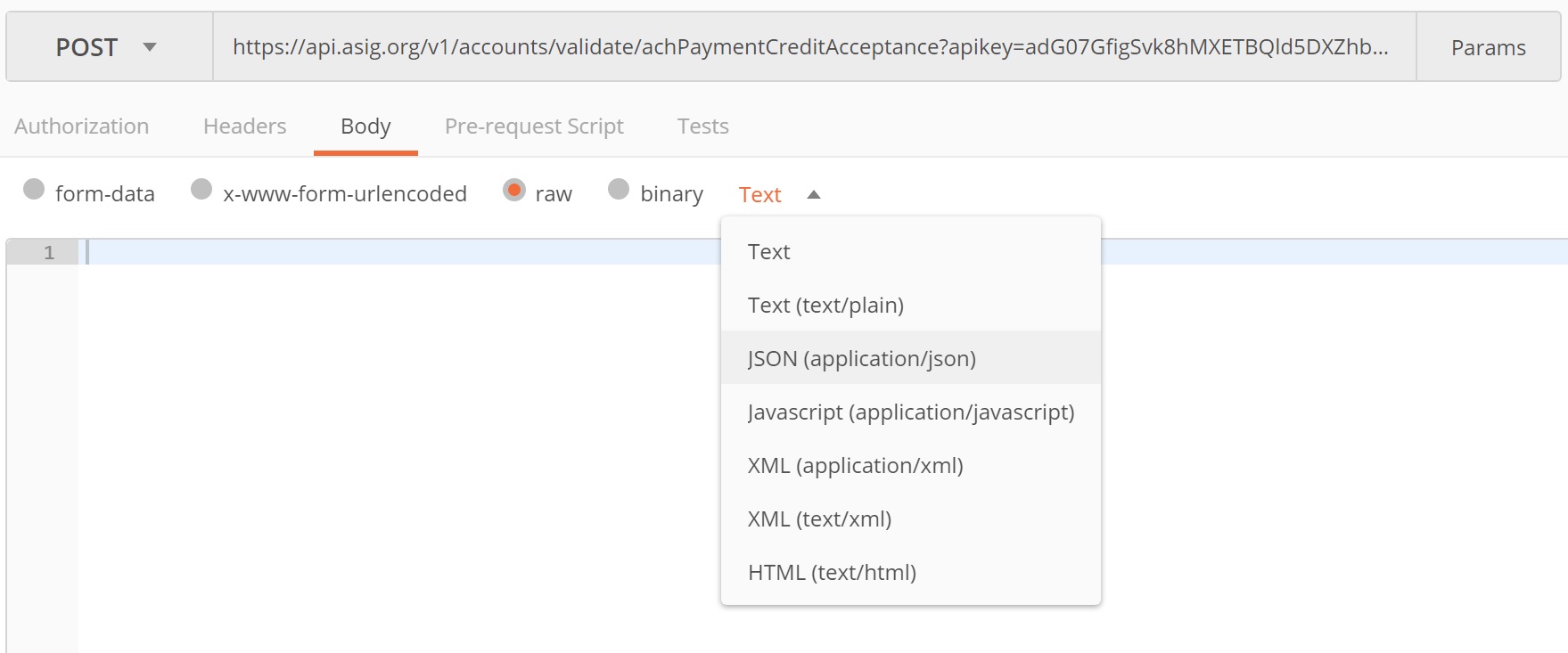

The header includes the Resource URL and Consumer Key with raw json content sent in the request body.

Postman Body Raw

*NOTE: In order to send json in the request body, select the radio button raw and set the text to “JSON(application/json).”
